6LEDs Slim Lightead
Product Name
6LEDs Slim Lightead
Product No
SL63L1 / SL63L2 (R65 XA2/XB2)
Product Description
It is a super slim lighthead that is built with 1 watt or 2 watt high intensity LEDs and it is only 8.5mm high. It comes in TIR optics, and 150º ultra -wide vision. Suit to mount on the side or corner of any vehicles.
Features
- Self flasher
- IP67
- Synchronization
- High brightness and no light fade
- 150° ultra-wide
- Exclusive patent design
- ECE R65 Class 1 (XA2/ XB2)
Approvals
ECE R10 / ECE R65 Class 2 (XA2/XB2)
SAE Class 1
Specification
- Voltage：12/24 VDC
- Current ：1.4 Amps Max.(LS-SL63L1)
2.2 Amps Max.(LS-SL63L2 ) - LED : 1 watt, 12 pcs(LS-SL63L1) / 2 watt, 24 pcs(LS-SL63L2)
- Patterns：22 (LS-SL63L1) / 23 (LS-SL63L2)
- Functions : Pattern, Hi/Low power, Synchronization
- Colors：Red / Amber / Blue / White / Green
- Connector：4 wires (red/black/yellow/white)
- Lens material : PC
- Base material : Aluminum

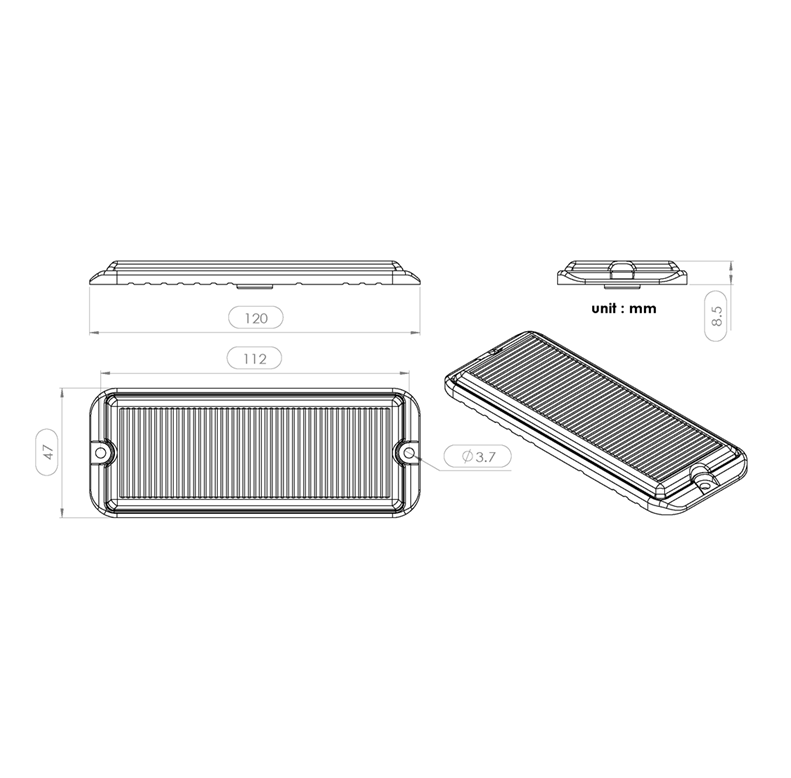

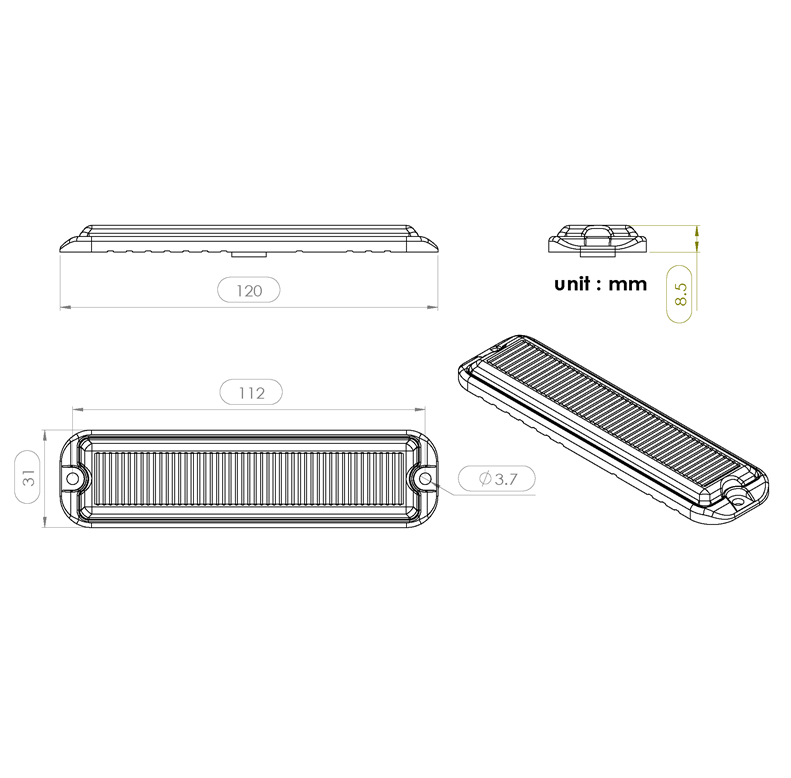

- Dimension : 120mm(L)x31mm(D)x8.5mm(H) (LS-SL63L1)
120mm(L)x47mm(D)x8.5mm(H) (LS-SL63L2) - Weight : 54g (SL63L1) /82g (SL63L2)
