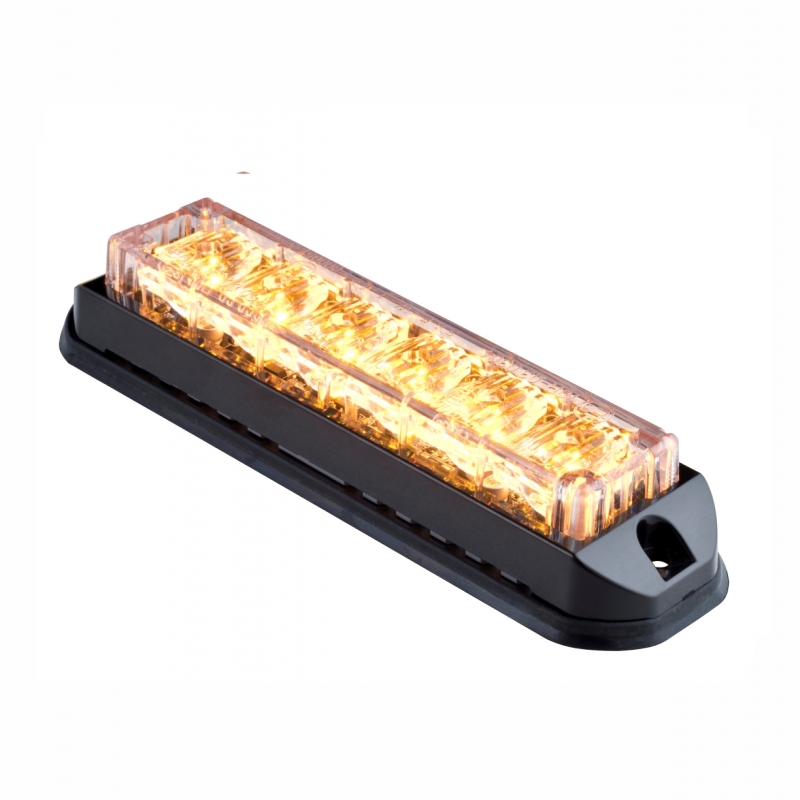

R65 TIR 4 /6 LEDs Lighthead
Product Name
R65 TIR 4 /6 LEDs Lighthead
Product No
LS-LH43R/LS-LH63R
Product Description
This is a compact, surface-mounted warning light which utilizes 3535, or Rabel PC Amber LED technology. Each light is powered by 3 watt LEDs. Meanwhile, it has multiple flash patterns which selected by the user via a control wire located on the rear of the light.
Features
- Self flasher
- IP67 Cerification
- Synchronization
- High brightness and no light fade
- Patent design
- ECE R65 Class 1 (XA1/ XB1)
Approvals
ECE R10 / R65 CLASS 1 / SAE CLASS 1
Specification
- Voltage：12/24 VDC
- Current：1 Amps Max. (LH-43R)
- 1.2 Amps Max. (LH-63R)
- LED：3W, 4 pcs(Single color) / 3W, 8pcs(Dual color) (LH-43R)
- 3W, 6 pcs(Single color) / 3W, 12 pcs(Dual color) (LH-63R)
- Patterns：22
- Fixed form：Screw-mounted
- Functions：Pattern , Hi/Low power , Synchronization
- Colors：Red / Amber / Blue / White / Green
- Connector：4 wires (red/black/yellow/white)
- Flange：Low
- Material：PC lens / Aluminum base

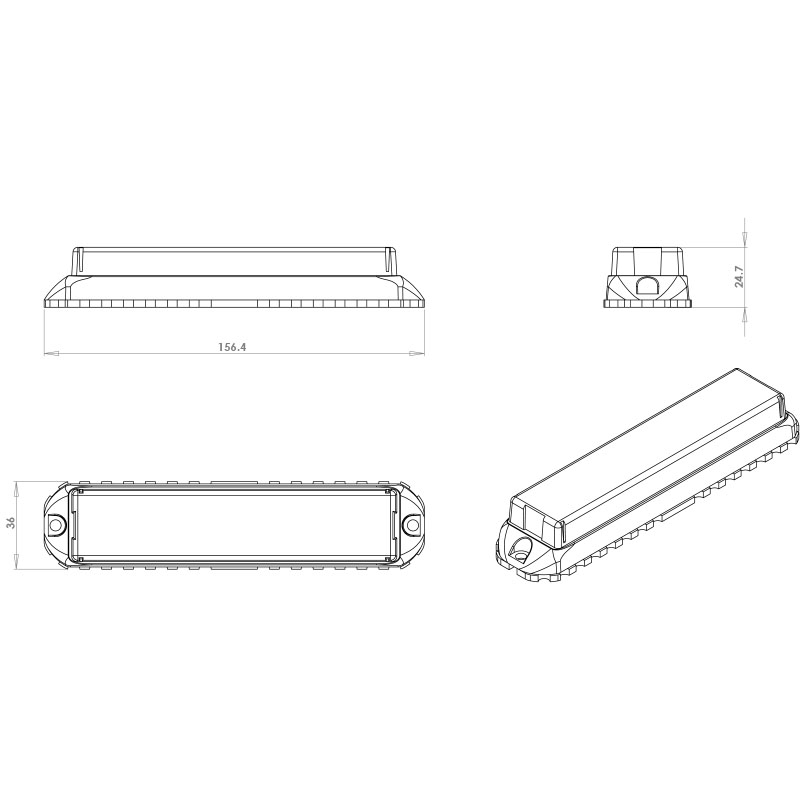

- Dimension：116.4mm(L)x36mm(D)x24.7mm(H) (LH-43R)
- 156.4mm(L)x36mm(D)x24.7mm(H) (LH-63R)
- Weight：102g(L) (LH-43R)
- 140g(L) (LH-63R)
