6 LEDs lighthead
Product Name
6 LEDs lighthead
Product No

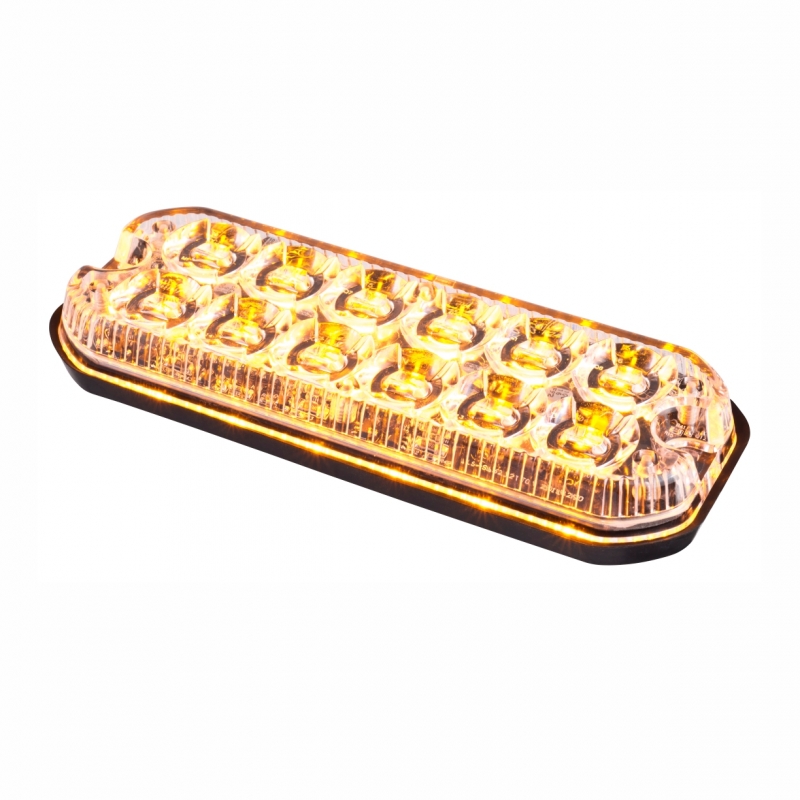

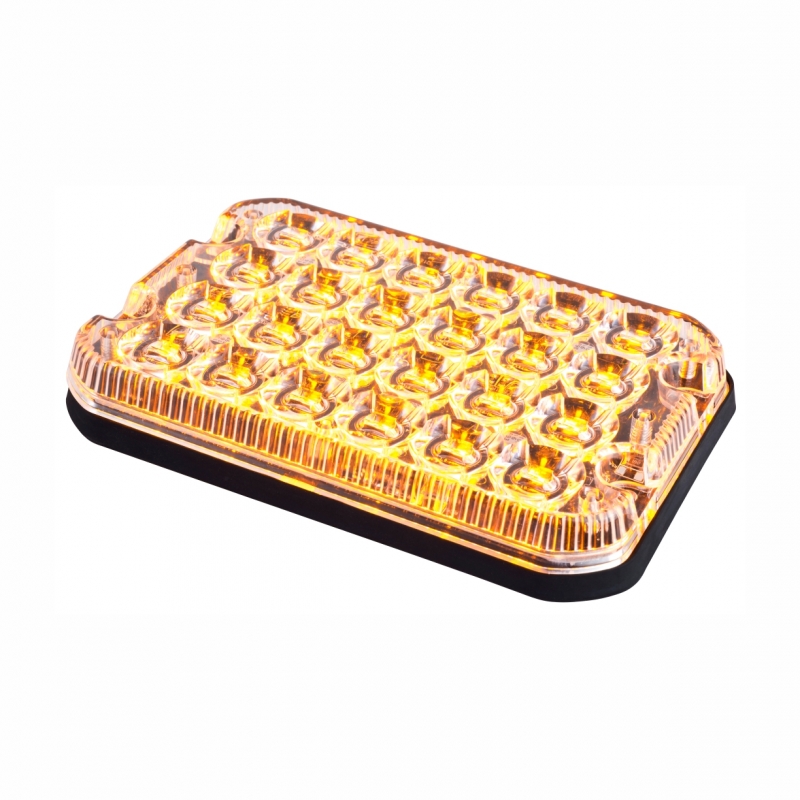

LS-SL62L1 /L2 /L4 (R65 )
Product Description
This is a new optic design delivering ultra-wide 150º dispersion. Each light is powered by 3 watt LEDs. ECE R65 Class 2 approval for Amber and Blue. Meanwhile, it has multiple flash patterns selected by the user via a control wire located on the rear of the light.
Features
- Self flasher
- IP67
- Synchronization
- High brightness and no light fade
- ECE R65 Class 2 (XA2 / XB2)
- Exclusive patent design
- Patent no. 006964193(EU)
201915660(AU)
Approvals
ECE R10 / ECE R65 Class 2
SAE Class 1 / CA13
Specification
- Voltage：12/24 VDC
- Current : 1.0 Amps Max.
- LED : 3 watt , 6 pcs(Single Color)
3 watt , 12 pcs(Dual Color) - Patterns：21
- Functions : Pattern, Hi/Low power, Synchronization
- Colors：Red / Amber / Blue / White / Green
- Connector：4 wires (red/black/yellow/white)
- Flange : Low
- Lens material : PC
- Base material : Aluminum
- Dimension : 156.8mm(L)x36.4mm(D)x13mm(H) (SL62L1)

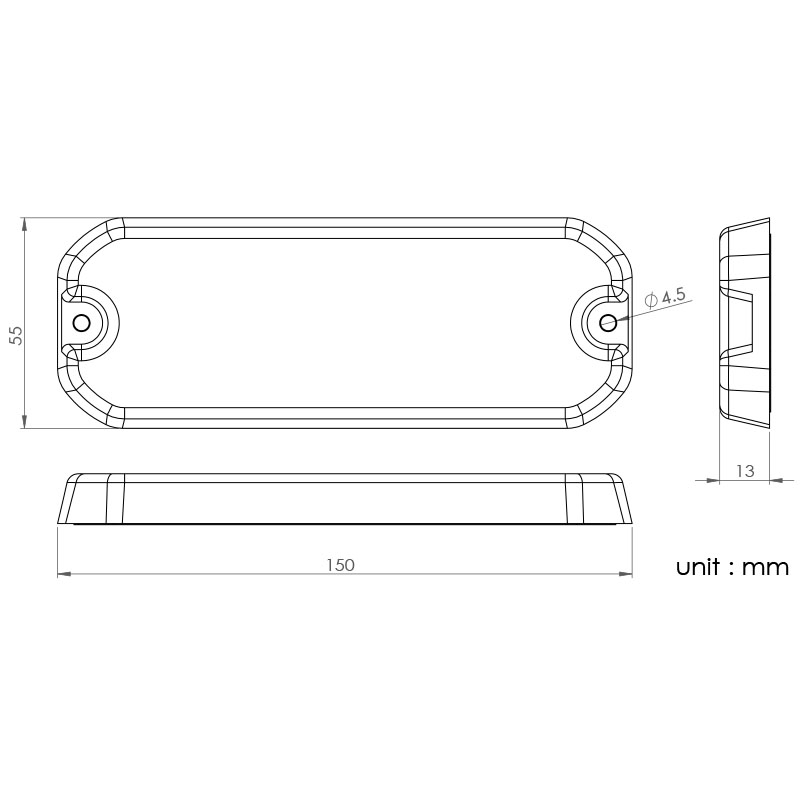

- 150mm (L) x 55mm (D) x 13mm (H) (SL62L2)

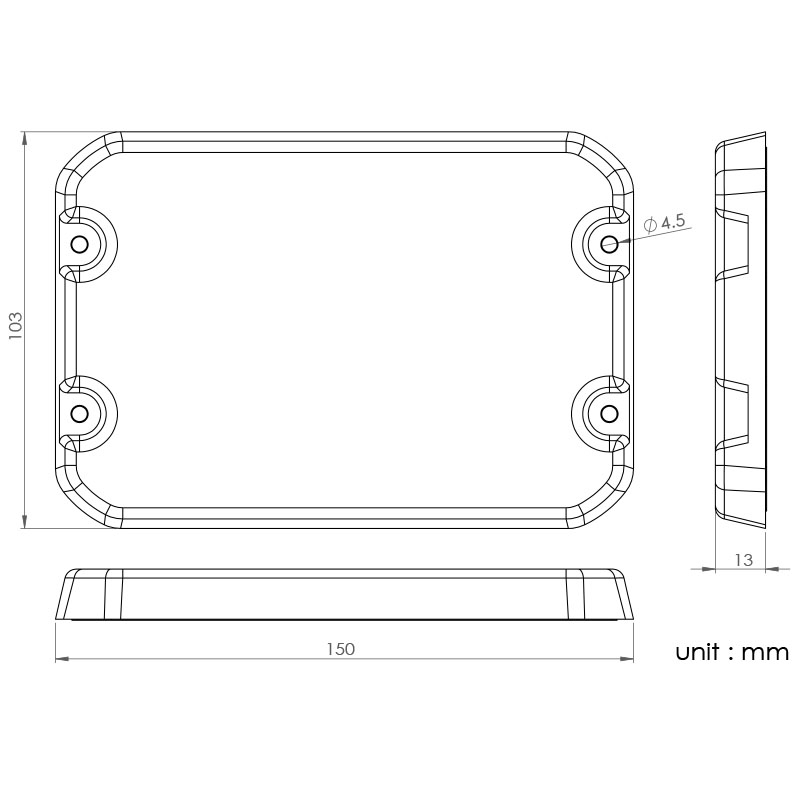

- 150mm (L) x 103mm (D) x 13mm (H) (SL62L4)
- Weight : 102g (SL62L1) / 135g (SL62L2) / 165g (SL62L4)
