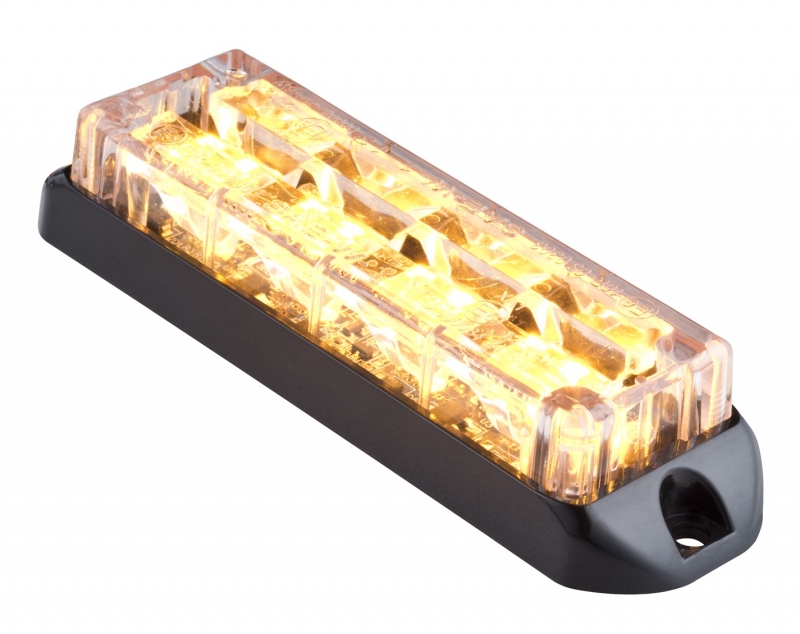

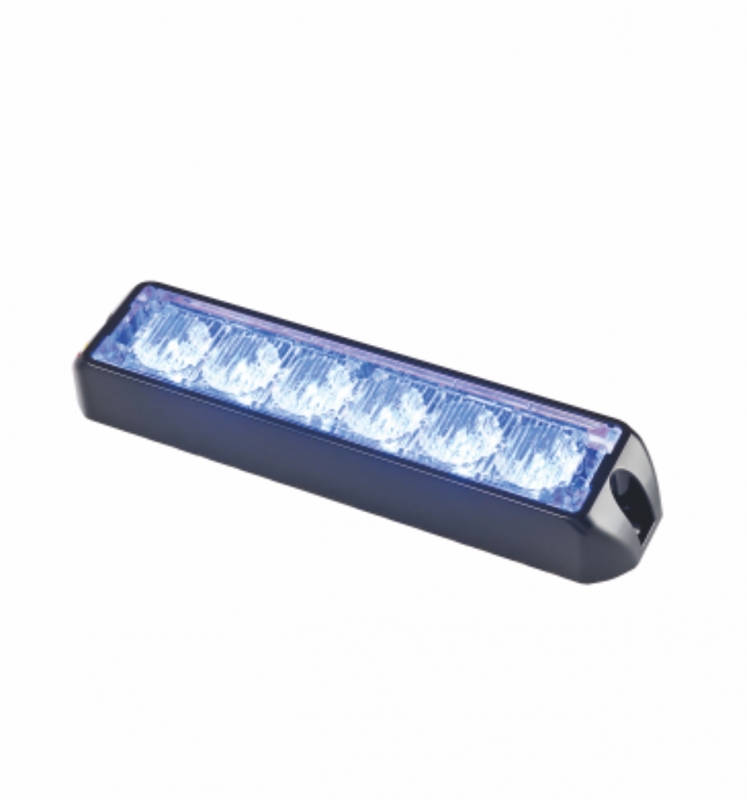

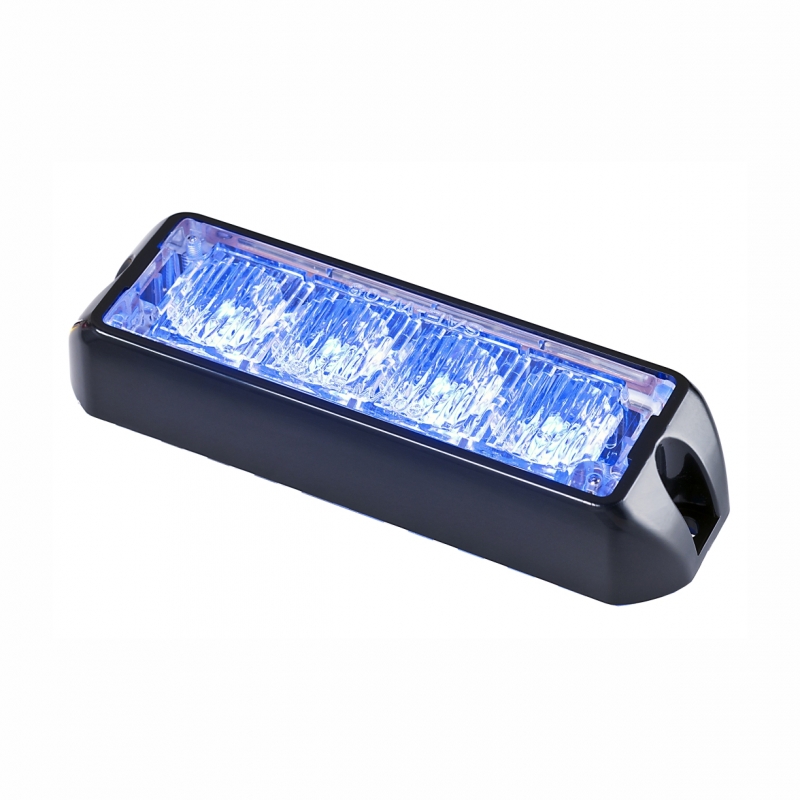

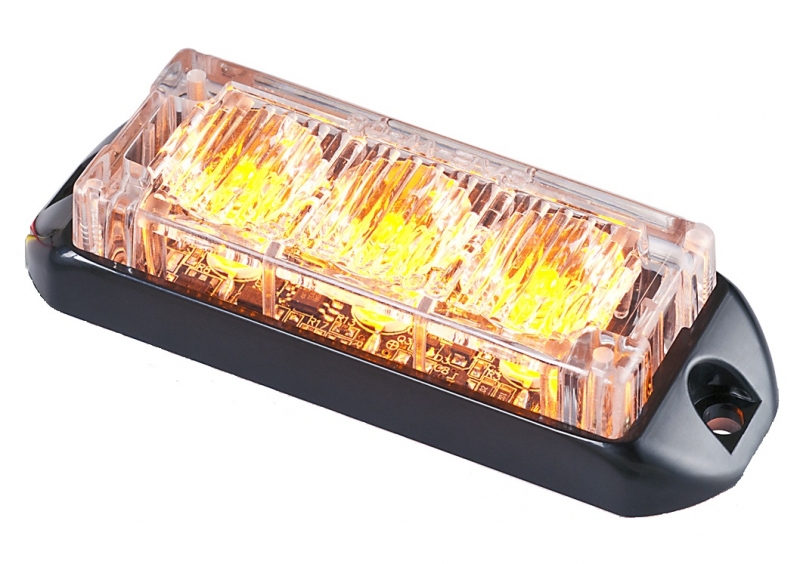

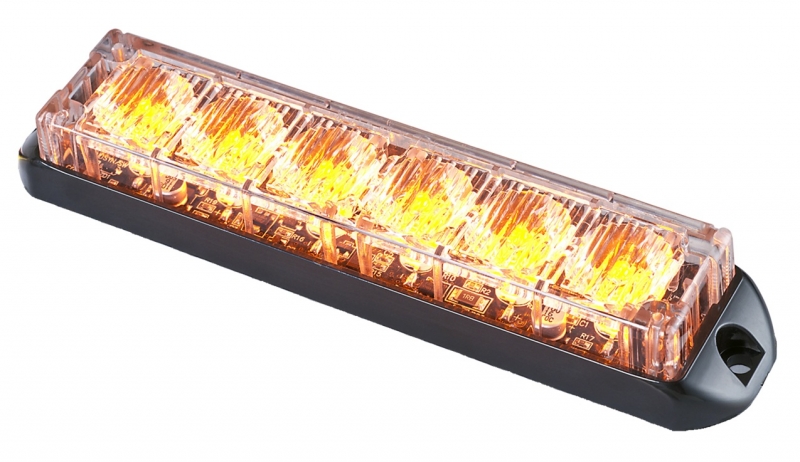

TIR 3 / 4 / 6LEDs Lighthead

Product Name

TIR 3 / 4 / 6LEDs Lighthead

Product No

LS-LH33T(L) / LS-LH33T(H) / LS-LH43T(L) / LS-LH43T(H)/ LS-LH63T(L) / LS-LH63T(H)

Product Description

The LS-LH33T(L) / LS-LH33T(H) / LS-LH43T(L) / LS-LH43T(H)/ LS-LH63T(L) / LS-LH63T(H)
series are a compact, surface-mounted warning light which utilizes generation III, and TIR LED technology. Each light is powered by 3 watt LEDs. Meanwhile it has multiple flash patterns which selected by user via a control wire located on the rear of the light.

Features

    • Self flasher
    • IP67 Cerifitication
    • Synchronization
    • High brightness and no light fade
    • Patent design

Approvals

  ECE R10 / SAE Class 1ECE R10

Specification

    • Voltage：12/24 VDC
    • Current：0.5 Amps Max.  ( LS-LH33T(L) / LS-LH33T(H) )
    •                  1 Amps Max.   ( LS-LH43T(L) / LS-LH43T(H) / LS-LH63T(L) / LS-LH63T(H) )
    • LED：3 watt, 3 pcs    ( LS-LH33T(L) / LS-LH33T(H) )
    •           3 watt, 4pcs    ( LS-LH43T(L) / LS-LH43T(H) )
    •           3 watt, 6pcs    (LS-LH63T(L) / LS-LH63T(H) )
    • Patterns：12  ( LS-LH33T(L) / LS-LH33T(H) )
    •                   25  ( LS-LH43T(L) / LS-LH43T(H) / LS-LH63T(L) / LS-LH63T(H) )
    • Fixed form：Screw-mounted
    • Functions：Pattern , Hi/Low power , Synchronization
    • Colors：Red / Amber / Blue / White / Green
    • Connector：4 wires (red/black/yellow/white)
    • Flange：Low(L) . High(H)
    • Material：PC lens / Aluminum base
    • Dimension：96.4mm(L)x36mm(D)x21.7mm(H)     ( LS-LH33T(L) / LS-LH33T(H) )
    •                       116.4mm(L)x34.1mm(D)x21.7mm(H)  ( LS-LH43T(L) / LS-LH43T(H) )
    •                        156.4mm(L)x36mm(D)x21.7mm(H)    (LS-LH63T(L) / LS-LH63T(H) )
    • Weight：82g(L). 86g(H)     ( LS-LH33T(L) / LS-LH33T(H) )
    •                103g(L). 108g(H)  ( LS-LH43T(L) / LS-LH43T(H) )
    •                140g(L). 149g(H)    (LS-LH63T(L) / LS-LH63T(H) )
    •
