6 LEDs Slim Lighthead
Product Name
6 LEDs Slim Lighthead
Product No
LS-SL61T(R10) / SL61R(R65)/LS-SL61TD(R10) / SL61RD(R65)
Product Description

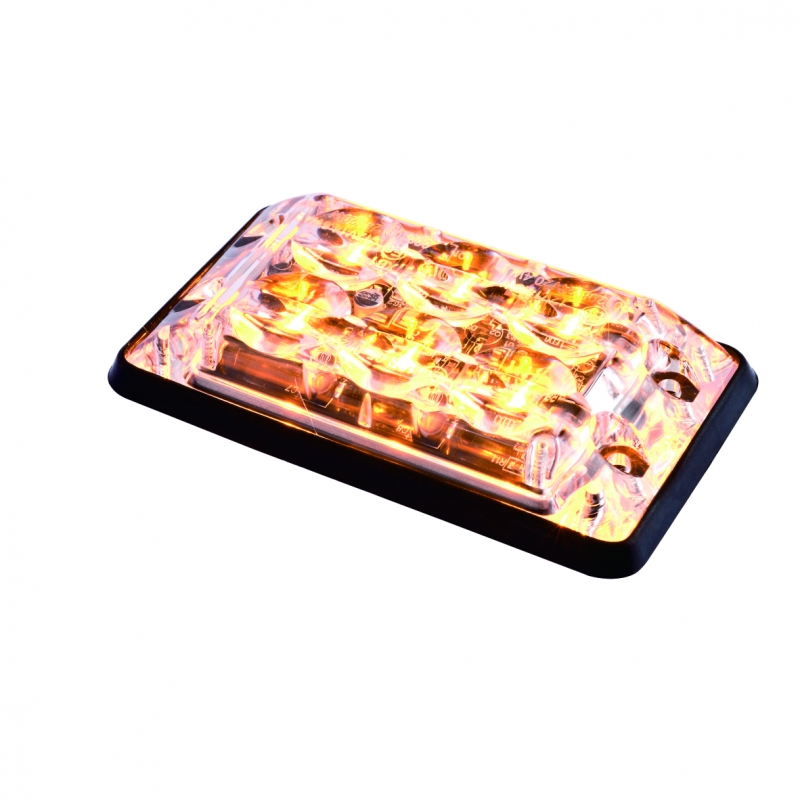

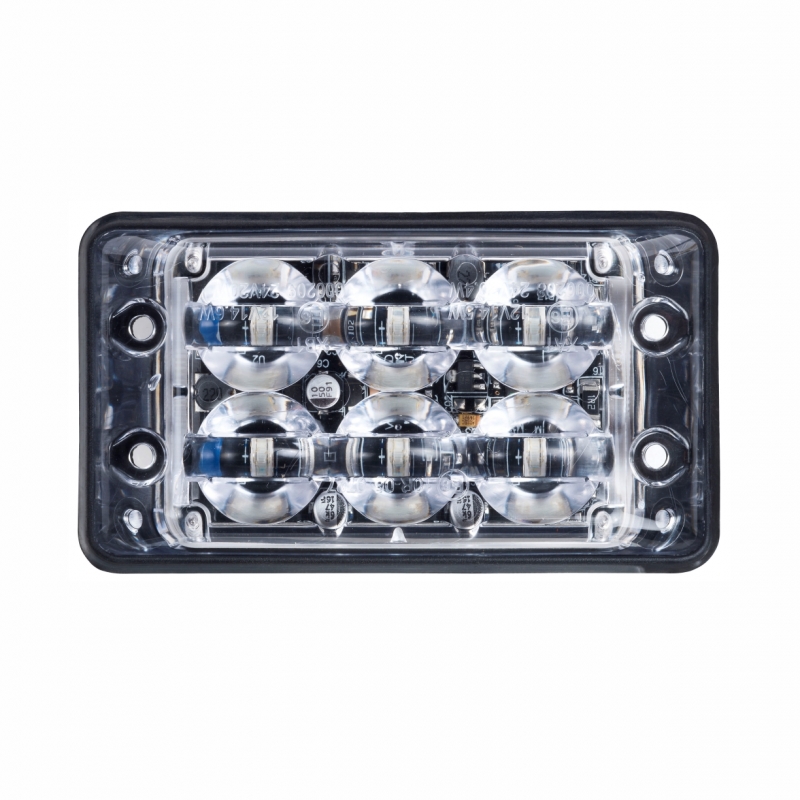

It is a super slim lighthead that is built with 6x1 watt or 3 watt high intensity LEDs and it is only 11mm high. It comes in TIR & Linear optics, and 150º ultra -wide vision. Suit to mount on the side or corner of any vehicles.
Features
- Self flasher
- IP67
- Synchronization
- High brightness and no light fade
- 150° ultra-wide
- Exclusive patent design
- ECE R65 Class 1 (XA1/ XB1)
Approvals
ECE R10 / ECE R65 Class 1
SAE Class 1
Specification
- Voltage：12/24 VDC
- Current ：0.7 Amps Max.(LS-SL61T / LS-SL61TD)
1.0 Amps Max.(LS-SL61R / SL61RD ) - LED : 1 watt, 6 pcs(R10) / 3 watt, 6 pcs(R65)
- Patterns：22
- Functions : Pattern, Hi/Low power, Synchronization
- Colors：Red / Amber / Blue / White / Green
- Connector：4 wires (red/black/yellow/white)
- Lens material : PC
- Base material : Aluminum

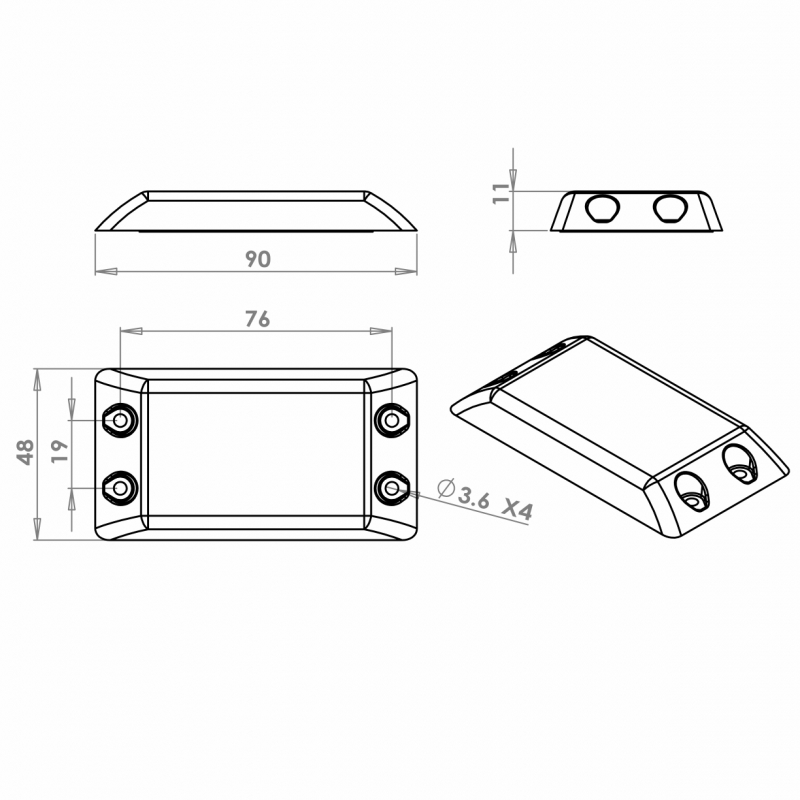

- Dimension : 90mm(L)x48mm(D)x11mm(H) (LS SL61TD/SL61RD)
150mm(L)x29mm(D)x11mm(H) (LS-SL61T/SL61R) - Weight : 61g (SL61T/R) /64g (SL61TD/RD)
